Compression Bonded Magnets

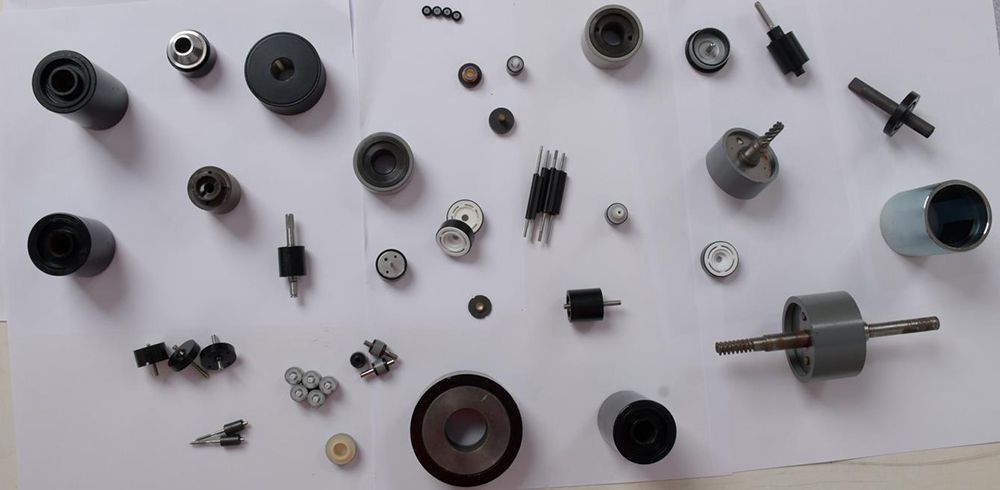

Bonded SmCo Magnets

Bonded SmCo Magnets
Request A Quote

Step into a world of precision and power with NGYC's exceptional bonded SmCo magnets. Crafted with utmost precision, our magnets are tailored to meet your unique needs, offering unparalleled performance in a variety of shapes and specifications.

Our magnets not only offer the precision and versatility of bonded permanent magnets but also boast exceptional resistance to corrosion and high-temperature stability. Ideal for a wide range of applications, including computer and office devices such as HDDs, CD/DVD-ROM spindle motors, printers, and fax machine stepper motors. They are also suitable for automotive applications such as permanent magnet starter motors, power steering motors, automatic window motors, seat adjustment motors, and speed sensors. In addition, our magnets are suitable for use in household appliances such as watches, air conditioning stepper motors, camera driving motors, and more.

Technical Data (Bonded SmCo Magnet)
Grade Remanence Coercivity Intrinsic Coercivity Max. Energy Product Reversible Temperature Coefficient (RTC)
Br Hcb Hcj (BH)Max α (Br)
MT KA/M KA/M KJ/M3 %/ ℃
Gs KOe KOe MGOe
SCZ-4T
380-420 200-280 640-1030 28-36 -0.03
3.8-4.2 2.5-3.5 8.0-13.0 3.5-4.5
SCZ-5T
410-540 265-360 640-1200 36-44 -0.03
4.1-5.4 3.3-4.5 8.0-15.0 4.5-5.5
SCZ-9
610-660 415-480 640-1200 68-76 -0.03
6.1-6.6 5.2-6.0 9.0-15.0 8.5-9.5
SCZ-11
640-720 430-510 640-1200 76-88 -0.03
6.4-7.2 5.4-6.4.4 8.0-15.0 9.5-11.0

Note: T refers to isotropic material.

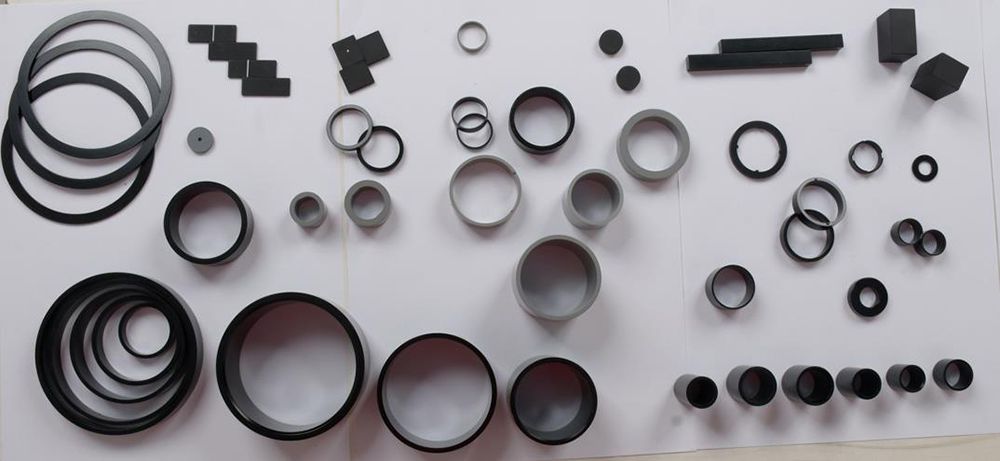

Bonded NdFeB Magnets

Bonded NdFeB Magnets
Request A Quote

Our bonded NdFeB magnets are a new type of permanent magnet material that boasts high residual magnetism, coercive force, and magnetic energy product. Compared to traditional permanent magnet materials, our bonded NdFeB magnets offer a higher performance-to-price ratio and can be tailored to meet the complex shape, size, and small-scale production requirements of various industries.

These magnets find applications in a range of fields, from office automation equipment and electronic machinery to audio-visual devices, instruments, small motors, measuring devices, cellphones, DVD-ROM and HDD spindle motors, as well as specialized micro DC motors and automation instruments.

Technical Data (Bonded NdFeB Magnet)
Grade Remanence Coercivity Intrinsic Coercivity Max. Energy Product Reversible Temperature Coefficient (RTC) Max. Working Temperature
Br Hcb Hcj (BH)Max α (Br) TW
T KA/M KA/M KJ/M3 %/ ℃ ℃
KGs KOe KOe MGOe
BNP-6
0.55-0.62 285-370 600-755 44-56 -0.13 100
5.5-6.2 3.6-4.6 7.5-9.5 5.5-7
BNP-8
0.62-0.69 385-445 640-800 64-72 -0.13 120
6.2-6.9 4.8-5.6 8-10 8.0-9.0
BNP-9
0.65-0.70 400-440 640-800 70-76 -0.12 120
6.5-7.0 5.0-5.5 8-10 8.8-9.5
BNP-10
0.68-0.72 420-470 640-800 76-84 -0.11 120
6.8-7.2 5.3-5.9 8-10 9.5-10.5
BNP-11
0.70-0.74 445-480 680-800 80-88 -0.11 120
7.0-7.4 5.6-6.0 8.5-10 10.0-11.0
BNP-8SR
0.62-0.66 410-465 880-1120 64-72 -0.13 150
6.2-6.6 5.2-5.8 11-14 8.0-9.0
BNP-8H
0.61-0.65 410-455 1190-1440 64-72 -0.07 125
6.1-6.5 5.2-5.7 15-18 8.0-9.0
BNP-8L
0.60-0.64 360-400 715-800 56-64 -0.13 110
6.0-6.4 4.5-5.0 9-10 7.0-8.0
BNP-11L
0.70-0.74 400-440 520-640 78-84 -0.11 110
7.0-7.4 5.0-5.5 6.5-8 9.8-10.5
BNP-12L
0.74-0.80 420-455 520-600 84-92 -0.08 110
7.4-8.0 5.3-5.7 6.5-7.5 10.5-11.5

Note: The above-mentioned characteristics are related to the shape and size of the magnet, and the performance can only be confirmed based on actual products.
