AlNiCo Magnets

Permanent magnet with excellent temperature stability

Prepare to be captivated by the magnetic prowess of NGYC's extraordinary AlNiCo magnets.

As industry leaders, we offer a comprehensive selection of AlNiCo magnets, including cast AlNiCo magnets and sintered AlNiCo magnets, designed to redefine the boundaries of magnetic performance.

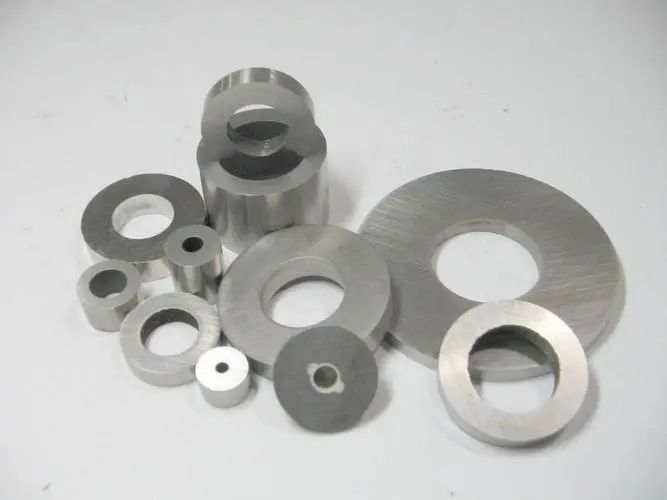

Cast AlNiCo Magnets

At NGYC, we produce cast AlNiCo magnets, which are known for their low temperature coefficient, high temperature resistance, moisture resistance, oxidation resistance, and excellent operational stability. These properties make cast AlNiCo magnets highly suitable for use in a wide range of applications, including automotive parts, instrumentation, acoustics, motors, and more.

Request A Quote

Applications

Automotive Industry: sensors, measurement instruments, engines, control motors, speakers, and high-speed permanent magnet motors like HERS and KERS systems.
Medical Industry: magnetic pump couplings, magnetic resonance imaging (MRI), and nuclear magnetic resonance (NMR) systems.
Industrial Machinery: control motors, generators, traveling wave tubes (TWT), electronic tubes, and speakers.

Technical Data

Grade	Remanence	Coercivity	Max. Energy Product	Temperature Coefficient of Remanence	Temperature Coefficient of Coercivity
	Br	Hcb	(BH)Max	α (Br)	α (Hcj)
	MT	KA/M	KJ/M3	%K	%K
	Gs	Oe	MGOe	%K	%K
LN10	600/6000	40/500	10.00/1.20	-0.02	0.03
LNG12	700/7000	44/550	12.00/1.50	-0.02	0.03
LNG13	680/6800	48/600	13.00/1.63	-0.02	0.03
LNG18	900/9000	48/600	18.00/2.25	-0.02	0.03
LNG37	1200/12000	48/600	37.00/4.63	-0.02	0.03
LNG40	1250/12500	48/600	40.00/5.00	-0.02	0.03
LNG44	1250/12500	52/650	44.00/5.50	-0.02	0.03
LNG52	1300/13000	56/700	52.00/6.50	-0.02	0.03
LNG56	1300/13000	58/720	56.00/7.00	-0.02	0.03
LNG60	1330/13300	60/750	60.00/7.50	-0.02	0.03
LNGT18	580/5800	90/1130	18.00/2.25	-0.02	0.03
LNGT30	1100/11000	56/700	30.00/3.75	-0.02	0.03
LNGT32	800/8000	100/1250	32.00/4.00	-0.02	0.03
LNGT38	800/8000	110/1380	38.00/4.75	-0.02	0.03
LNGT44	850/8500	120/1500	44.00/5.50	-0.02	0.03
LNGT48	900/9000	120/1500	48.00/6.00	-0.02	0.03
LNGT60	950/9500	110/1380	60.00/7.50	-0.02	0.03
LNGT72	1050/10500	112/1400	72.00/9.00	-0.02	0.03
LNGT88	1100/11000	115/1450	88.00/11.00	-0.02	0.03
LNGT36J	700/7000	140/1750	36.00/4.50	-0.02	0.03
LNGT52J	900/9000	140/1750	52.00/6.50	-0.02	0.03

Note: Curie temperature and the temperature coefficient are for reference only.

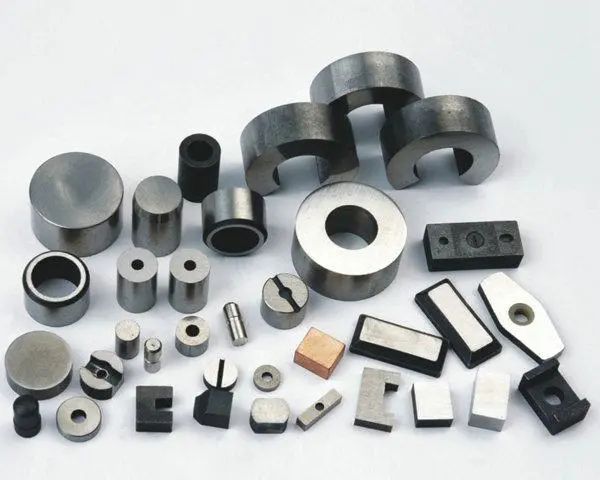

Sintered AlNiCo Magnets

Sintered AlNiCo magnets are produced using powder metallurgy and are ideal for creating complex, lightweight, thin, and small products.

Our Sintered AlNiCo magnets find wide usage in various fields

Temperature Sensors and Automotive Electronic Sensors
Magnetic Switches: magnetron tubes, traveling wave tube (TWT) amplifiers, regulators, and motors.
Instrumentation and Communication Equipment

Request A Quote

Technical Data

Grade	Remanence	Coercivity	Max. Energy Product	Curie Temperature	Working Temperature	Temperature Coefficient
	Br	Hcj	(BH)Max	Tc	Tw	α(Br)
	MT	KA/M	KJ/M3	℃	℃	%/℃
	Gs	Oe	MGOe	℃	℃	%/℃
FLN8	500/5000	40/500	9/1.13	760	450	-0.022
FLNG12	700/7000	48/600	12.4/1.55	810	450	-0.014
FLNG34	1200/12000	48/600	34/4.25	890	450	-0.016
FLNG37	1250/12500	48/600	37/4.62	890	450	-0.016
FLNGT18	600/6000	90/1130	18/2.20	860	450	-0.02
FLNGT28	1050/10500	60/600	28/3.50	850	450	-0.02
FLNGT38	800/8000	120/1500	38/4.75	850	450	-0.02
FLNGT42	880/8800	120/1500	42/5.25	820	450	-0.02
FLNGT33J	700/7000	140/1750	33/4.13	850	450	-0.025

Note: Curie temperature and the temperature coefficient are for reference only.
